SharpBCI.EEGDeviceAdapter Class Reference

An abstract base class from which all device adapters should inherit. More...

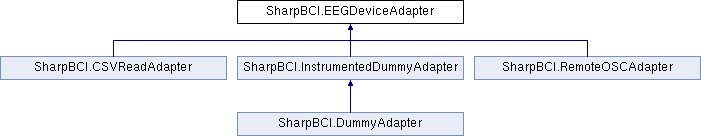

Inheritance diagram for SharpBCI.EEGDeviceAdapter:

Public Member Functions
delegate void	DataHandler (EEGEvent evt)
abstract void	Start ()
	Function that sets up the listener on and begins flushing data through the pipeline This function needs to be overridden in each device adapter implementation. More...
abstract void	Stop ()
	Function that tears down the listener and stops flushing data through the pipeline This function needs to be overridden in each device adapter implementation. More...
void	AddHandler (EEGDataType type, DataHandler handler)
	Use this function to add a handler function that is called for each EEGEvent of the specified EEGDataType. More...
void	RemoveHandler (EEGDataType type, DataHandler handler)
	Use this function to remove a handler that has been added with the AddHandler function. More...
void	FlushEvents ()
	Thread safe function that removes events from the event queue and calls FlushEvent (without a s) on each event to send data through pipelines. More...

Public Attributes
readonly int	channels
	Number of channels or sensors collecting data from. More...
readonly double	sampleRate
	The rate per second that data is expected to be received. More...

Protected Member Functions
	EEGDeviceAdapter (int channels, double sampleRate)
void	EmitData (EEGEvent evt)
	Puts EEGEvents into the eventQueue to wait; events are flushed and handlers operate on the events. More...

Detailed Description

An abstract base class from which all device adapters should inherit.

Constructor & Destructor Documentation

SharpBCI.EEGDeviceAdapter.EEGDeviceAdapter ( int  channels, double  sampleRate  )

protected

Member Function Documentation

void SharpBCI.EEGDeviceAdapter.AddHandler	(	EEGDataType	type,
		DataHandler	handler
	)

Use this function to add a handler function that is called for each EEGEvent of the specified EEGDataType.

delegate void SharpBCI.EEGDeviceAdapter.DataHandler

(

EEGEvent

evt

)

void SharpBCI.EEGDeviceAdapter.EmitData ( EEGEvent  evt )

protected

Puts EEGEvents into the eventQueue to wait; events are flushed and handlers operate on the events.

void SharpBCI.EEGDeviceAdapter.FlushEvents

(

)

Thread safe function that removes events from the event queue and calls FlushEvent (without a s) on each event to send data through pipelines.

void SharpBCI.EEGDeviceAdapter.RemoveHandler	(	EEGDataType	type,
		DataHandler	handler
	)

Use this function to remove a handler that has been added with the AddHandler function.

abstract void SharpBCI.EEGDeviceAdapter.Start ( )

pure virtual

Function that sets up the listener on and begins flushing data through the pipeline This function needs to be overridden in each device adapter implementation.

Implemented in SharpBCI.CSVReadAdapter, SharpBCI.InstrumentedDummyAdapter, and SharpBCI.RemoteOSCAdapter.

abstract void SharpBCI.EEGDeviceAdapter.Stop ( )

pure virtual

Function that tears down the listener and stops flushing data through the pipeline This function needs to be overridden in each device adapter implementation.

Implemented in SharpBCI.CSVReadAdapter, SharpBCI.InstrumentedDummyAdapter, and SharpBCI.RemoteOSCAdapter.

Member Data Documentation

readonly int SharpBCI.EEGDeviceAdapter.channels

Number of channels or sensors collecting data from.

readonly double SharpBCI.EEGDeviceAdapter.sampleRate

The rate per second that data is expected to be received.

---

The documentation for this class was generated from the following file:

• /home/travis/build/berkona/SharpBCI/SharpBCI/DeviceAdapters.cs
